RigSentry Setup Guide

Get your RigSentry up and running.

Setting up your RigSentry RV Monitor takes just a few steps. Power on the monitor, open the RigSentry app and your phone will guide you through connecting the device to your account.

✓

Keep your phone near your RigSentry Monitor during setup. The initial connection uses Bluetooth to discover and pair with the monitor.

RigSentry RV Monitor

Before you start

Have these things ready before beginning device setup.

1

Your RigSentry Monitor

Connect the monitor to power and allow it to boot.

2

Your phone

Keep your iPhone or Android device within a few feet of the monitor.

3

RigSentry app

Open the RigSentry mobile app and sign in or create an account.

4

Wi-Fi information

If using Wi-Fi, have the network information for your RV or campground ready.

Step-by-step

Set up your monitor in the RigSentry app.

The screens below show the setup process in the RigSentry mobile app.

1 Start in the RigSentry app

Create an account or sign in.

Open the RigSentry mobile app. If you're a new customer, choose Set Up New Account. If you already have a RigSentry account, choose I Already Have an Account.

✓

New customer: select Set Up New Account.

✓

Existing customer: select I Already Have an Account.

RigSentry app account setup screen
2 Prepare your monitor

Power on your RigSentry Monitor.

A new RigSentry unit automatically boots into setup mode. Keep your phone nearby while the monitor is being configured.

✓

Connect your RigSentry Monitor to power.

✓

Keep your phone within a few feet of the monitor during Bluetooth setup.

✓

Tap Continue when you're ready.

Why Bluetooth? Bluetooth is used during initial setup so your phone can find and communicate directly with the nearby RigSentry Monitor.
RigSentry setup instructions showing power on and Bluetooth setup
3 Choose connectivity

Choose Wi-Fi or add LTE service.

Next, tell the app how you want your new monitor to connect. Wi-Fi can be used by itself, or you can enable RigSentry LTE data service for cellular connectivity.

Wi-Fi Only

Connect your monitor to your RV, home or campground Wi-Fi. No monthly RigSentry data fee.

RigSentry LTE

Add cellular data service for another way to keep the monitor connected when suitable Wi-Fi isn't available.

Your app currently displays RigSentry LTE service at $12.99/month. Because pricing can change, the price shown in the app at enrollment should be treated as the current offer.
RigSentry setup screen for choosing Wi-Fi only or LTE data service
4 Find your monitor

Let the app discover your RigSentry.

The RigSentry app scans for nearby monitors that are advertising over Bluetooth. A discovered device appears in the list with its unique monitor ID.

✓

Keep your monitor powered on.

✓

Stay close to the monitor while the app scans.

✓

When your monitor appears, tap the device row to select it.

Your monitor may appear with a name beginning with RVMONITOR- followed by its unique identifier.
RigSentry app Bluetooth device discovery screen
5 Pair the device

Wait while your phone connects.

After selecting your RigSentry Monitor, the app begins pairing with the device. Keep your phone close to the monitor and allow the connection process to finish.

✓

Do not move far away from the monitor during pairing.

✓

Keep the RigSentry app open while the connection completes.

✓

Once pairing completes, your monitor will appear in the RigSentry app.

RigSentry app pairing with a nearby monitor

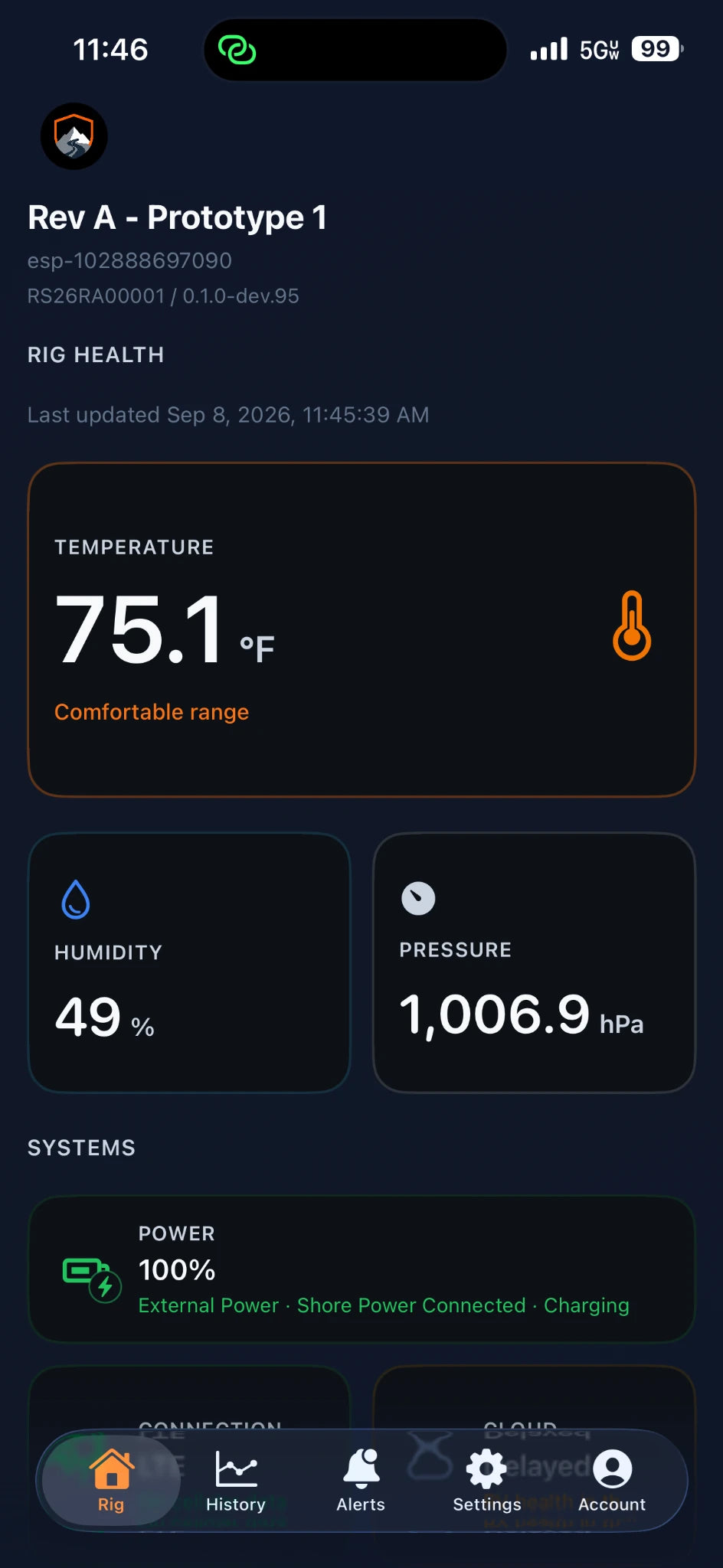

6 Setup complete

Your RigSentry is now connected.

Once pairing is complete, your RigSentry Monitor appears in the app and begins reporting its current status and environmental conditions.

✓

Confirm that your RigSentry device appears in the app.

✓

Verify that temperature, humidity and device status are being shown.

✓

Check that power, connectivity and cloud status are reporting normally.

✓

You're ready to configure alerts and begin monitoring your RV.

You're connected. Your RigSentry Monitor can now begin syncing RV conditions to your account. From here, you can review live status, history and alerts from the app.
RigSentry app showing a successfully paired RV monitor
After pairing

Finish setup in the app.

Once your phone is paired with the RigSentry Monitor, continue through the remaining instructions in the mobile app. The app will guide you through the options required for the connection method you selected.

NEXT
Configure connectivity Complete the Wi-Fi or LTE setup presented by the app.
THEN
Confirm monitoring Verify that your monitor is connected and reporting data.
FINALLY
Configure alerts Set the monitoring thresholds and notifications that matter to you.
Setup Troubleshooting

Having trouble connecting?

These are the first things to check if your monitor doesn't appear or pairing doesn't complete.

My RigSentry Monitor doesn't appear in the device list.
Confirm the monitor is powered on and keep your phone within a few feet of it. A new unit should boot into setup mode automatically. You can also select Scan Again in the app.
What device name should I look for?
During discovery, a RigSentry Monitor may appear with a Bluetooth name beginning with RVMONITOR- followed by a unique identifier.
Why does my phone need to be close to the monitor?
Initial setup uses Bluetooth communication between your phone and the nearby RigSentry Monitor. Keeping the devices close together helps provide a reliable setup connection.
Pairing seems stuck on “Connecting.”
Keep the monitor powered on, remain close to it and leave the RigSentry app open while pairing completes. If pairing does not complete, cancel the setup, return to device discovery and try scanning again.
Do I have to purchase LTE service?
No. RigSentry can be configured to use Wi-Fi without a RigSentry LTE subscription. LTE service is an optional connectivity choice for owners who want cellular data service for their monitor.
Can I add LTE later?
RigSentry is designed so LTE service can be managed separately from the monitor itself. If you initially choose Wi-Fi only, you do not need to purchase LTE simply to complete device setup.

Still having trouble?

Visit the RigSentry Help Center or send us a support request.

Visit RigSentry Support
